Material Of Components
Metal Cap: Aluminum with PE sleeve
Metal Base: Aluminum with PE sleeve
Spray Pump:
Actuator- PE w/ aluminum shell, Nozzle- POM, Body- PP w/ aluminum shell, Stem- PE, Piston- PE, Cylinder- PP, Spring- Stainless steel, Gasket- BUNA, Dip Tube- PE
Vial: Tubing glass
Custom Decoration
Double anodizing, embossing and silk screening
Drawing

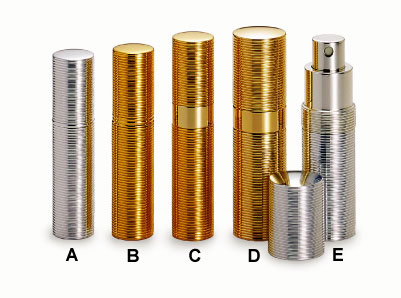

| ITEM | Fill Size | Overflow | Output | Collar Option | a | b | c | d | e | | A | 7.5 ml | 8.2 ml | 50 mcl | Narrow | 20.5 | 87.1 | 31.5 | 2.0 | 53.6 | | B | 7.5 ml | 8.2 ml | 50 mcl | 3-ring | 20.5 | 90.1 | 31.5 | 5.0 | 53.6 | | C | 7.5 ml | 8.2 ml | 50 mcl | Wide | 20.5 | 95.7 | 31.5 | 10.6 | 53.6 | | D | 15 ml | 17.0 ml | 90 mcl | Wide | 25.8 | 97.8 | 35.8 | 10.5 | 51.5 | | E | 15 ml | 17.0 ml | 90 mcl | rings | 25.8 | 97.8 | 35.8 | 10.5 | 51.5 |
| dimension unit: mm |  |
|
