Material Of Components
Metal Cap: Aluminum with PE sleeve
Metal Base: Aluminum with PE sleeve
Spray Pump:
Actuator- PE w/ aluminum shell, Nozzle- POM, Body- PP w/ aluminum shell, Stem- PE, Piston- PE, Cylinder- PP, Spring- Stainless steel, Gasket- BUNA, Dip Tube- PE
Vial: Tubing glass
Custom Decoration
Double anodizing, embossing and silk screening
Drawing

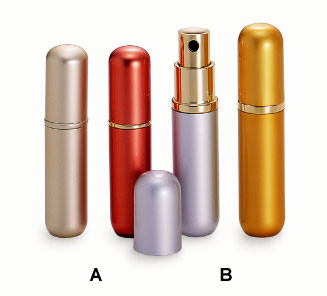

| ITEM | Fill Size | Overflow | Output | Collar Option | a | b | c | d | e | | A | 5 ml | 5.5 ml | 50 mcl | Narrow | 18.5 | 80.0 | 31.0 | 2.2 | 47.0 | | B | 7.5 ml | 8.2 ml | 50 mcl | Narrow | 20.5 | 89.2 | 31.8 | 3.6 | 53.8 |
| dimension unit: mm |  |
|
