Material Of Components
Metal Cap: Aluminum with PE sleeve
Metal Base: Aluminum with PE sleeve
Spray Pump:
Actuator- PE w/ aluminum shell, Nozzle- POM, Body- PP w/ aluminum shell, Stem- PE, Piston- PE, Cylinder- PP, Spring- Stainless steel, Gasket- BUNA, Dip Tube- PE
Vial: Tubing glass
Custom Decoration
Double anodizing, embossing and silk screening
Drawing

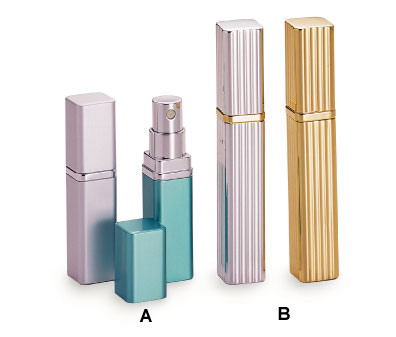

| ITEM | Fill Size | Overflow | Output | Collar Option | a | b | c | d | e | | A | 5 ml | 5.5 ml | 50 mcl | Narrow | 19.2 | 80.0 | 30.2 | 3.6 | 46.2 | | B | 5 ml | 9.4 ml | 50 mcl | Narrow | 18.9 | 114.5 | 38.0 | 3.5 | 73.0 |
| dimension unit: mm |  |
|
