Material Of Components
Matal Cap: Aluminum with PE sleeve
Matal Base: Aluminum with PE sleeve
Spray Pump:
Actuator- PE w/ aluminum shell, Nozzle- POM, Body- PP w/ aluminum shell, Stem- PE, Piston- PE, Cylinder- PP, Ball- Stainless steel, Spring- Stainless steel, Gasket- BUNA, Dip Tube- PE
Vial: Tubing glass
Custom Decoration
Double anodizing, embossing and silk screening
Drawing

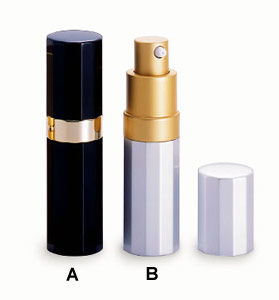

| ITEM | Fill Size | Overflow | Output | Collar Option | a | b | c | d | e | | A | 9 ml | 10.5 ml | 180 mcl | Narrow | 23.5 | 87.9 | 33.9 | 2.4 | 51.6 | | B | 15 ml | 17 ml | 180 mcl | Wide | 26.6 | 97.5 | 36.0 | 10.5 | 51.0 |
| dimension unit: mm |  |
|
